Greta Grossmann folding chair for Gubi
Technical development of outdoor folding chair based on Greta Grossman's design for GUBI - including measurement of existing reference, creation of CAD model, development of assembly principle, technical problem solving, and FEM calculations according to EN 16139 Level 2 with a focus on steel tube sizing.

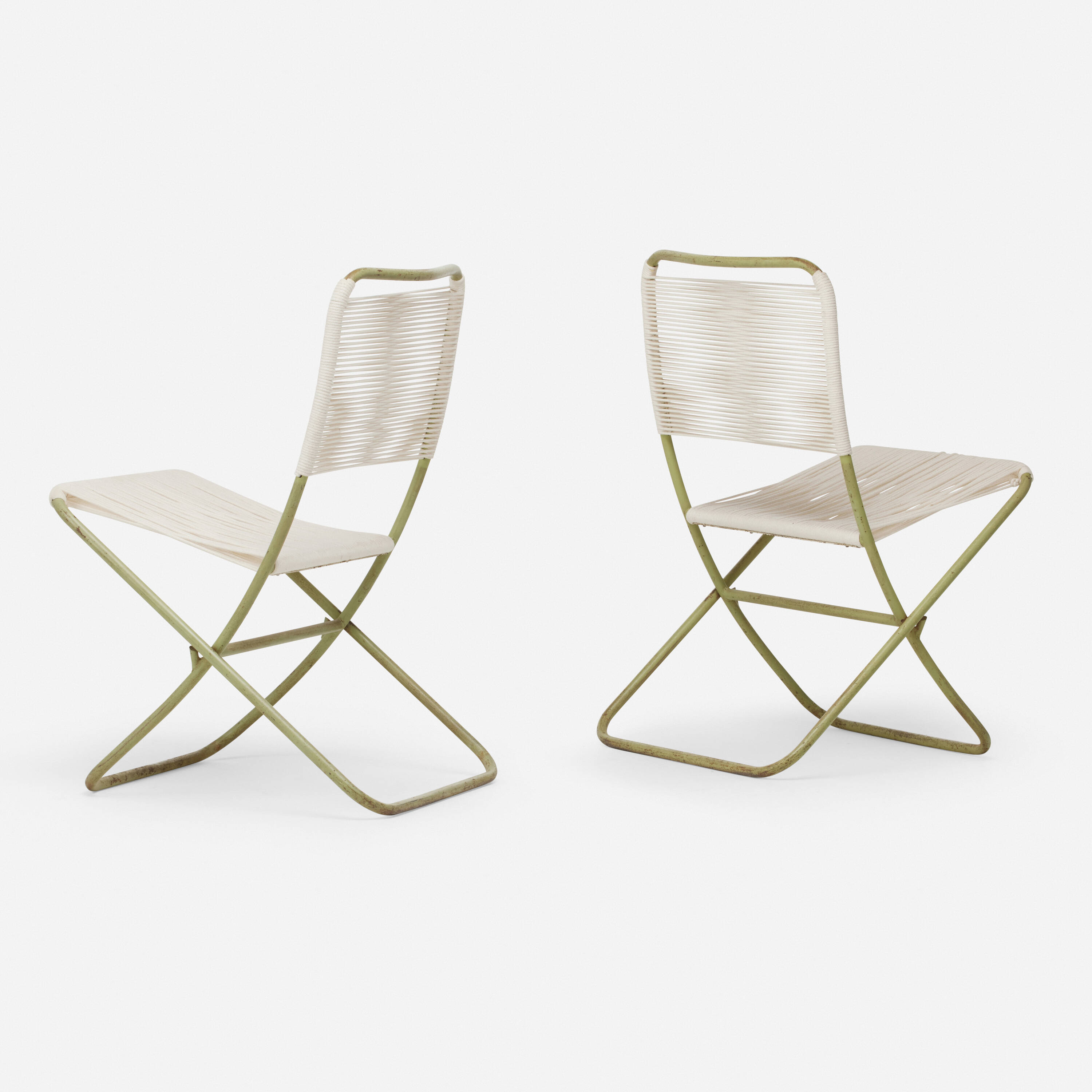

image source: lamodern.com
Completed Work
Performed measurement and CAD modeling of the product based on original drawings.
Developed assembly principles and delivered technical solutions for construction challenges in the assembly.
service / Tags
customer
DESIGNER
year
2020
image source: lamodern.com
Technical measurement and digital reconstruction
As part of the development of a new outdoor folding chair for GUBI, based on an original design by Greta Grossman, I have been responsible for precise measurement and digitization of the product. The work was based on original drawings and physical references, resulting in a fully built CAD model, which formed a technical foundation for further construction work. The CAD model ensured that the design's aesthetic expression was preserved, while also integrating the technical requirements for outdoor use in the early stages of the project.
Construction, assembly solutions, and strength calculations
I have developed a durable and production-ready solution for the chair's assembly principle, with a special focus on functionality, aesthetics, and ease of assembly. Along the way, several iterations of the construction were worked on to optimize both strength and material consumption, without compromising the design's intention. To ensure that the chair meets the requirements for public use, detailed FEM calculations were carried out in accordance with EN 16139 Level 2. These included simulation of load scenarios and subsequent dimensioning of the chair's steel tubes, so that the construction can withstand prolonged use in demanding outdoor environments.
image source: lamodern.com
